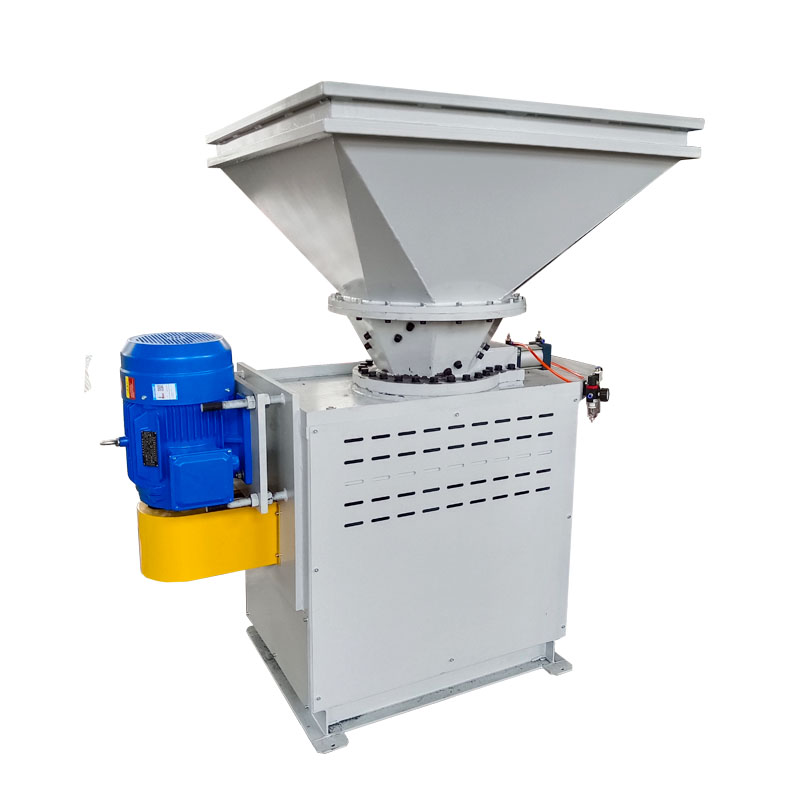

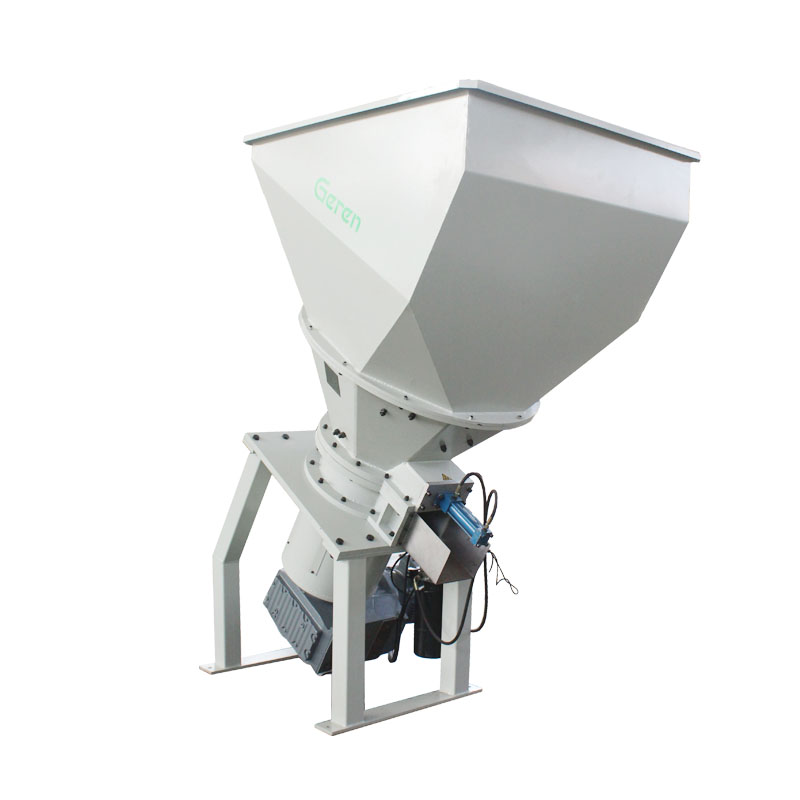

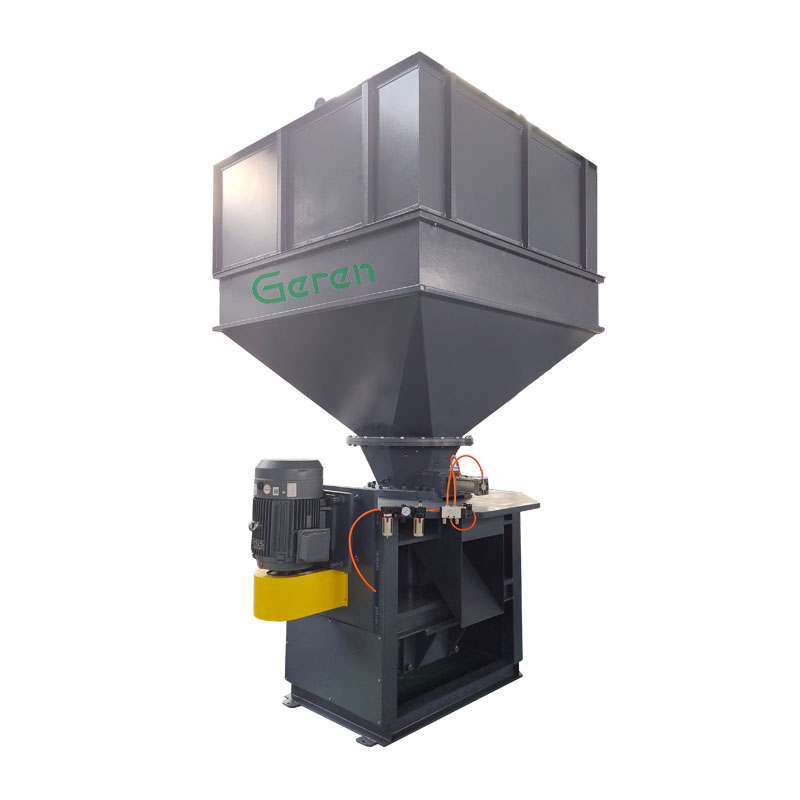

Name of crusher: vertical crusher, vertical crusher, metal chip crusher.

Crusher structure: vertical crusher is composed of crushing bucket, static crushing knife, rotary feeding arm, rotary dynamic crushing ring, static crushing ring, foreign body discharge mechanism, debris discharge structure, base and drive reducer.

The crusher works: when the chips are poured into the crushing bucket, the chips are driven by the feeding arm to rotate together. When the chips touch the static crushing knife embedded in the inner wall of the crushing bucket, the chips are torn and sheared to fall into the bottom of the crushing bucket. At the bottom, the chips are further sheared and torn by two short rocker arms and the static crushing knife. After the cutting and grinding screening of the sieve crushing ring, the crushed chips fall into the discharge mechanism through the screening slot and are discharged.

Material requirements for crushing chips: vertical metal cluster crusher, crushing cluster chips. The crumb crusher can crush the chips produced in the lathe machining process within 5000mm in length, and the particles after crushing are between 20mm and 50mm

Chip advantages after crushing: chip crusher, the chips after the crusher can be directly bagged, compared to the previous large group stacking, saving space, some chips produced in the processing process are also stained with chip oil, chip oil if not cleaned in time, not only affect the recovery price of chips, but also pollute the environment.
horizontal chip crush adopts single shaft rotate at low speed, it can effectively crush metal or nonmetal chips, that machine uses cutter head to cut, cut, tear and pull material, it has the advantages of large torque, high output, low noise and high wear resistance, and can tear all kinds of steel chips, copper chips, aluminum chips and iron chips to the shape and size easy to handle. It can greatly reduce the volume of chips. The chips can be fed continuously or intermittently when the crusher is working. Horizontal chip crusher can make chip drying, briquetting, smelting pre-treatment and transportation become simple and easy.
